ASCII Boxes

The box- utility utilizes CSS ::before and ::after pseudo-elements to mimic a boxes drawn with ASCII Box-drawing characters

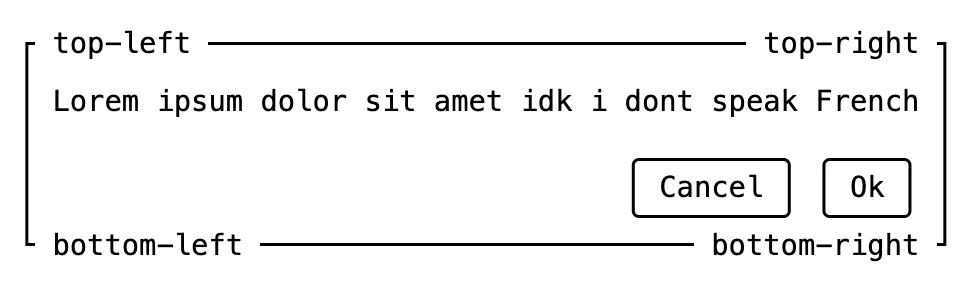

Below is an example of what the box utility is capable of:

Usage

Import the utility stylesheet

@import "@webtui/css/utils/box.css";

Add the box- attribute to any HTML element that supports pseudo-elements

<div box-="square">
  <h1>Hi Mom</h1>
</div>

Important: The box- utility is suffixed with a dash (-). Using box="..." will not work

Border Types

The box utility supports three different border types:

<div box-="square">Square</div>
<div box-="round">Round</div>
<div box-="double">Double</div>

Containment

The top and/or bottom lines of the box can be contained by adding the contain:* modifier to the box- attribute

• box-="<type> contain:!top" will not contain the top line
• box-="<type> contain:!bottom" will not contain the bottom line
• box-="<type> contain:none" will not contain the top or bottom lines

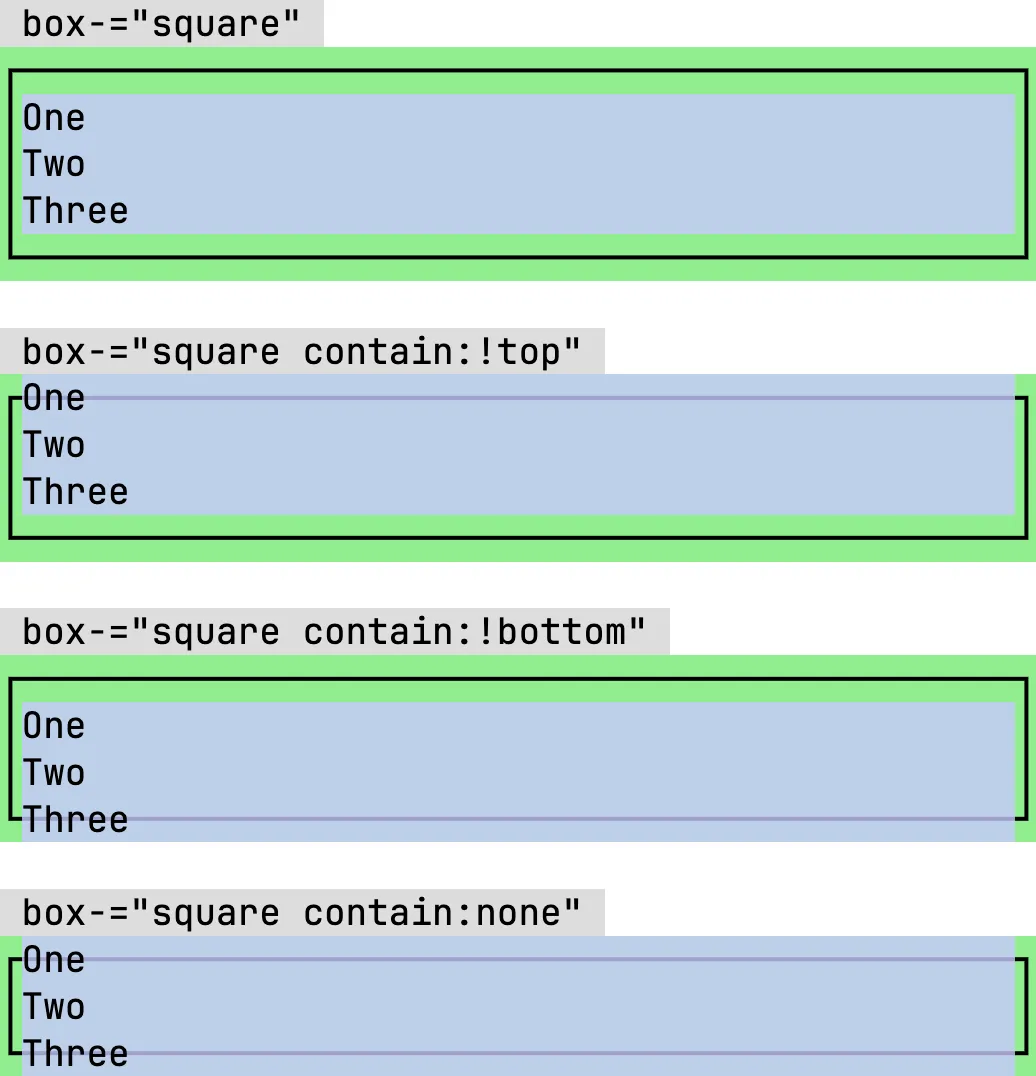

Take a moment and observe the screenshot below

• Highlighted in blue is the content of the box
• Highlighted in green is the padding of the box
• The box border lines are constructed with the CSS ::before and ::after pseudo-elements
• The box border lines appear behind the content within the <div box-="*"> element

Custom Properties

Elements with the box- attribute can be customized via Custom CSS properties [MDN Reference]

--box-border-color

The border color of the box

• Syntax: <color>
• Default Value: var(--foreground0)

<style>
  #my-box {
    --box-border-color: red;
  }
</style>

<div box-="square" id="my-box"></div>

--box-rounded-radius

The border radius of the round boxes

• Syntax: <length>
• Default Value: 4px

<style>
  #my-box {
    --box-rounded-radius: 10px;
  }
</style>

<div box-="round" id="my-box"></div>

--box-border-width

The border width for square and round boxes

• Syntax: <length>
• Default Value: 2px

<style>
  #my-box {
    --box-border-width: 10px;
  }
</style>

<div box-="square" id="my-box"></div>

--box-double-border-width

The width of boxes with double borders

• Syntax: <length>
• Default Value: 1px

<style>
  #my-box {
    --box-double-border-width: 10px;
  }
</style>
